ETi-SOL: monitor, control and analyse every solar plant you own, from one login.
Cloud-hosted SCADA for rooftop, C&I and utility-scale PV. Web dashboard for analysis, Android and iOS apps for status and alerts.
GW Portfolio
Solar Plants
Customers
Countries
Real-time data acquisition, monitoring and control of every inverter, meter and sensor on the plant
ETi-SOL collects plant data through ETi-LOG or your existing SCADA. Its alerts, analytics and reports help you prevent generation loss and improve plant performance.

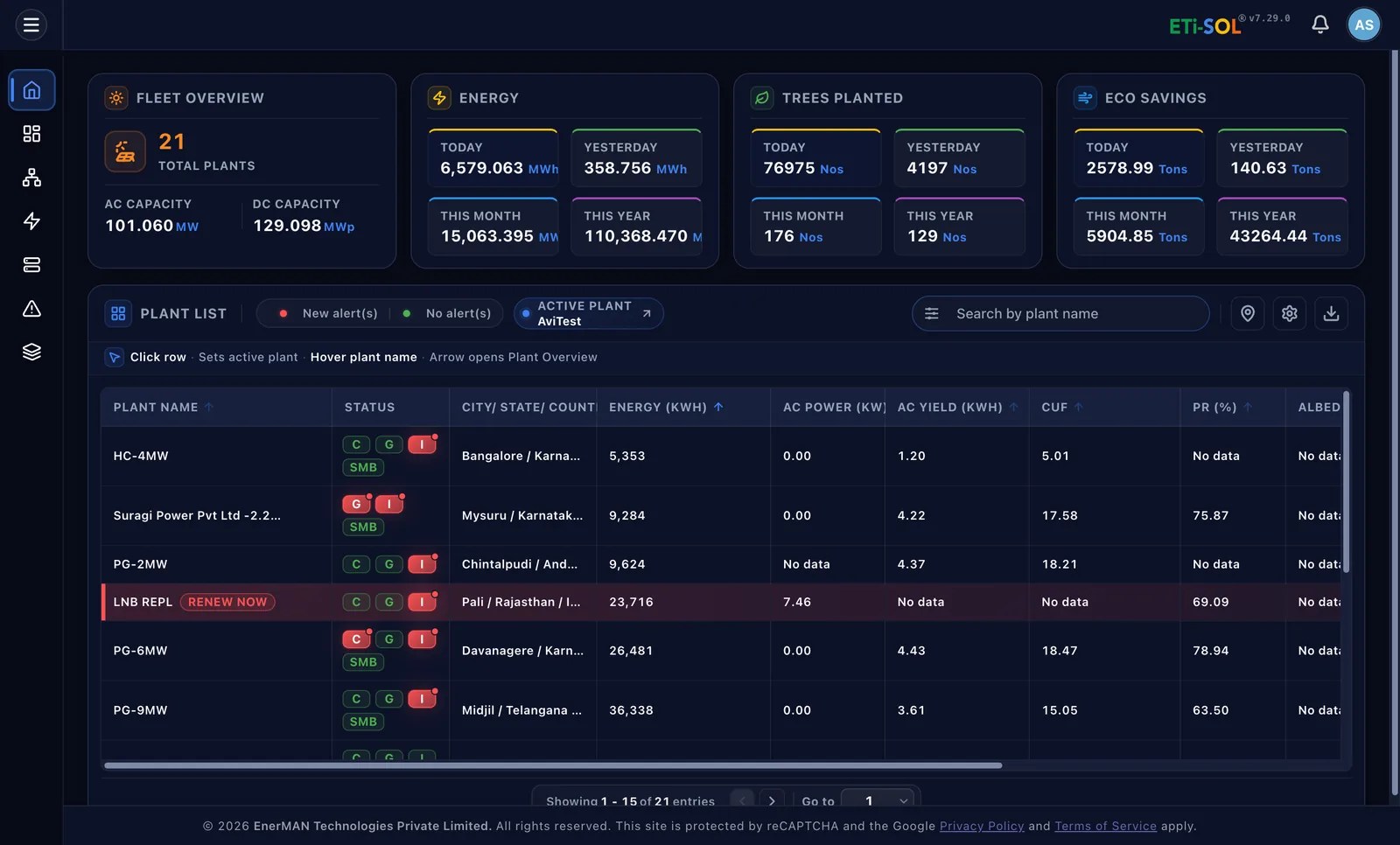

One dashboard across all plants, with the live status of all the equipment of plants in different geographies.
- AC and DC capacity per site
- Today's generation and status per site
- Integrate multiple SCADA into a single dashboard

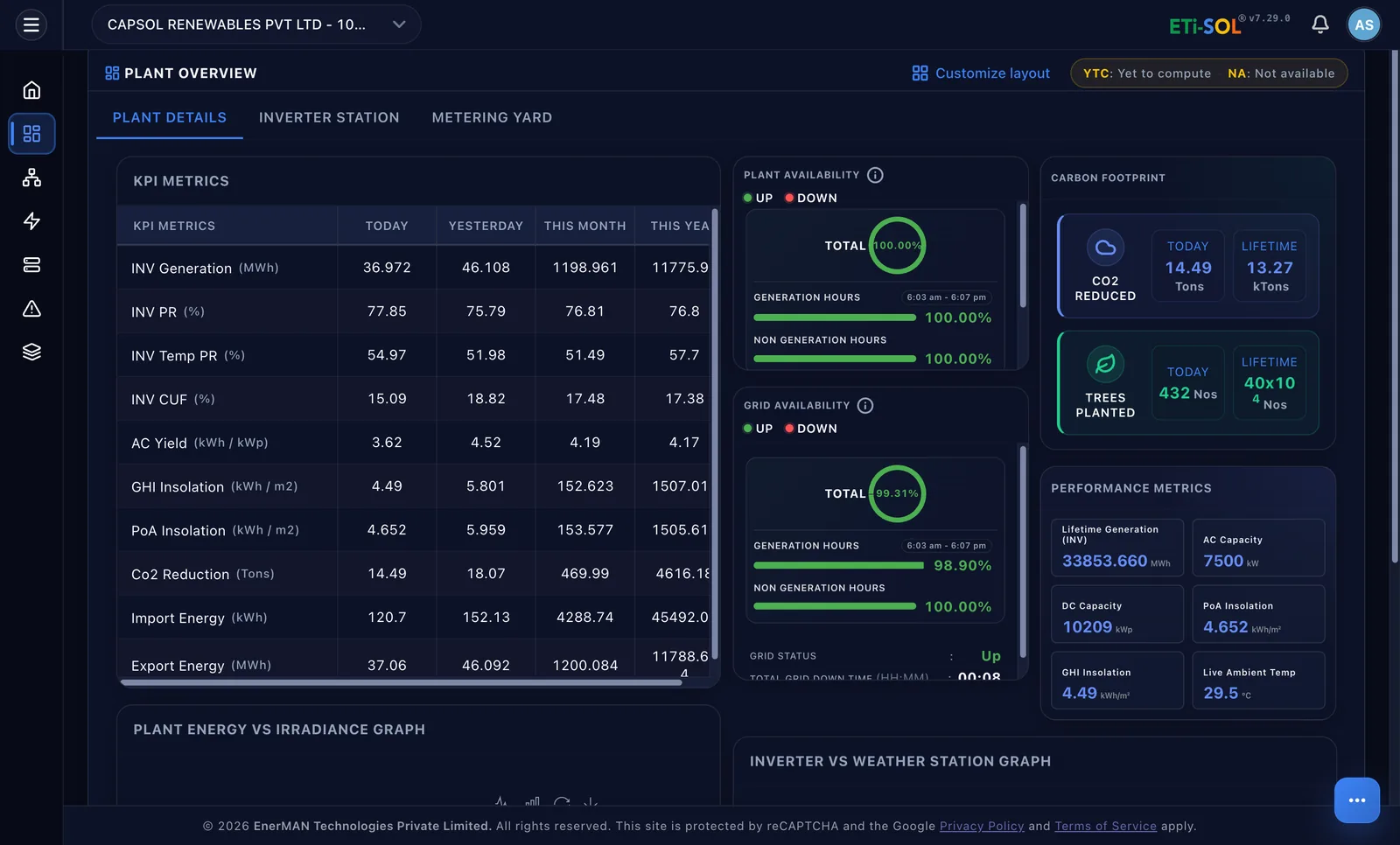

Performance ratio, CUF, yield, insolation and irradiance, with expected generation compared against the PVsyst model.
- Compare plants in the same region
- Works for plants without weather monitoring sensors
- Inverter ranking on seven parameters

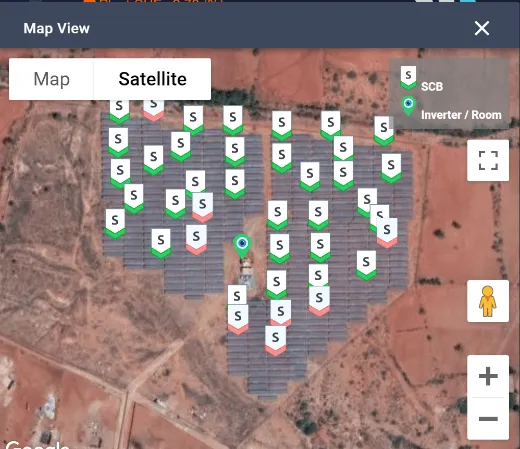

In larger solar power plants, it is difficult to locate a faulty SCB. Geo-tagging identifies the faulty SCB on a map, so the fault is found and attended to faster.
- Array layout, SCBs, ICRs and MCR geo-tagged on a GPS map
- Less time to attend a fault
- Less generation loss

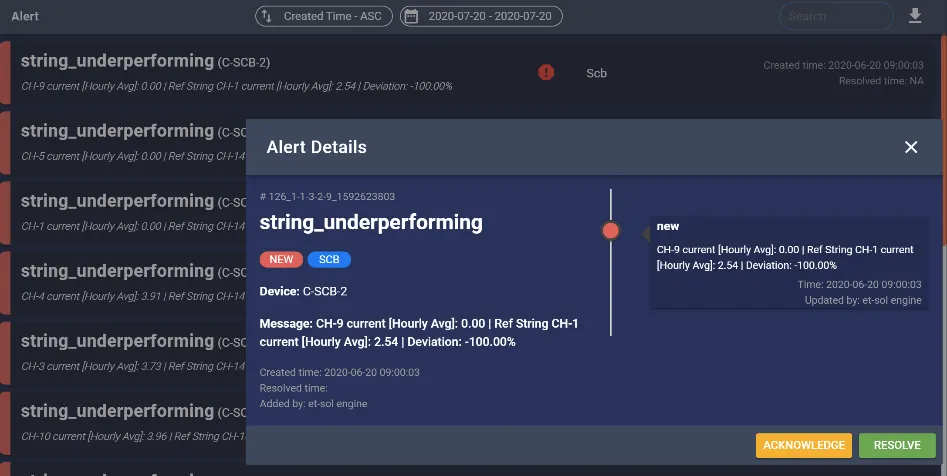

Robust alert mechanism for faults and under-performance.
- In-app notifications
- Alerts notification and tracking
Customisable dashboards and reports, with daily and monthly generation reports by email.
- Grid and inverter downtime tracking
- Inverter and string combiner box status
- Custom graphs and reports
Single line diagram
Monitor your PV plant in a single frame view, with components status and live data.
Retrofit
Uses the existing hardware of a non-functional SCADA in the plant, and monitors remotely and locally.
Works on 2G internet
No need of high-speed internet lease lines. Data is pushed to the SCADA server over a 2G connection.
Data export
Data export to external aggregators, and data exchange over FTP, OPC, API and MQTT.
Designed for
EPCs
Hand over a plant with monitoring already live, and keep O&M visibility after handover.
IPPs and asset owners
One portfolio view across plants, states and vendors, with the numbers a lender or buyer asks for.
C&I plant owners
Know today’s generation and yesterday’s faults without walking to the inverter room.

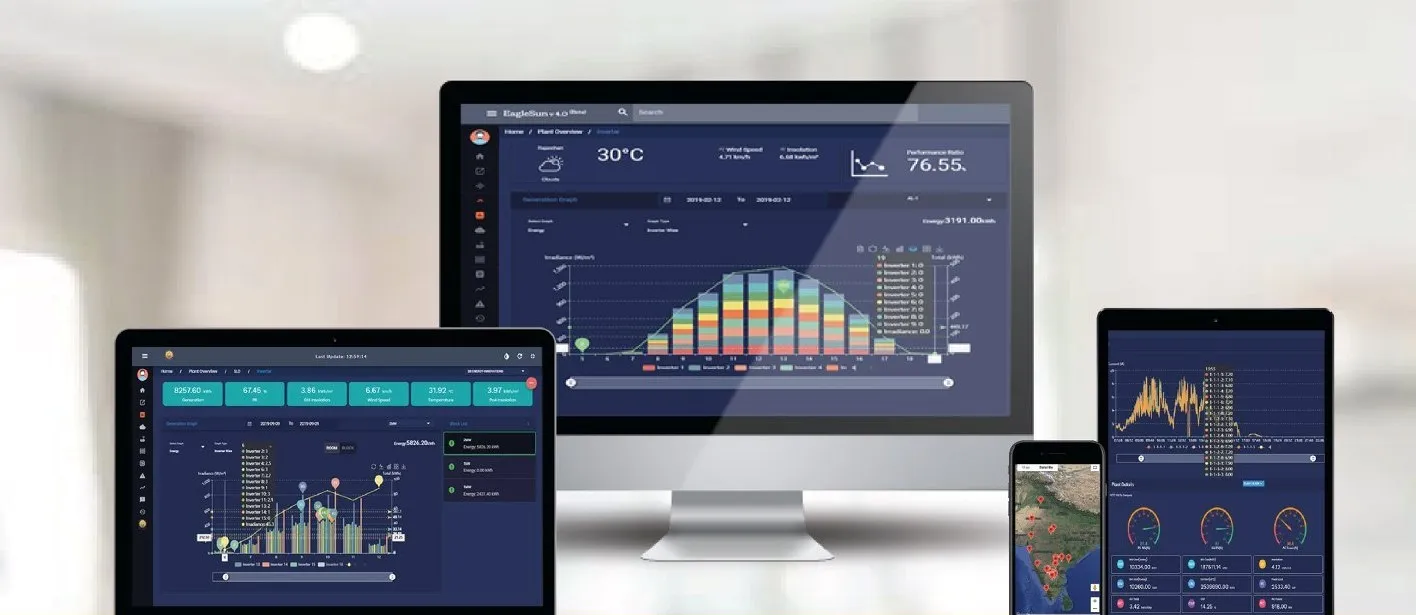

Web dashboard for analysis, Android and iOS apps for status and alerts.
ETi-SOL datasheet
What it monitors, what it needs on site, what it reports. Full manual on request.
Works with
Bring your solar plants to one screen.
For IPPs, EPCs, utilities, rooftop owners, agri-solar and O&M providers.
